BLM High Quality Lithium Battery Brushless Electrode Cap Grinder Single Side Tip Dresser for Spot Welding Electrode Caps Tips

2
MOQ
260
Price
BLM High Quality Lithium Battery Brushless Electrode Cap Grinder Single Side Tip Dresser for Spot Welding Electrode Caps Tips
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: China
Brand Name: BLM
Payment & Shipping Terms
Packaging Details: 1pc/1 box
Delivery Time: 7-20 work days
Payment Terms: T/T
Product Description

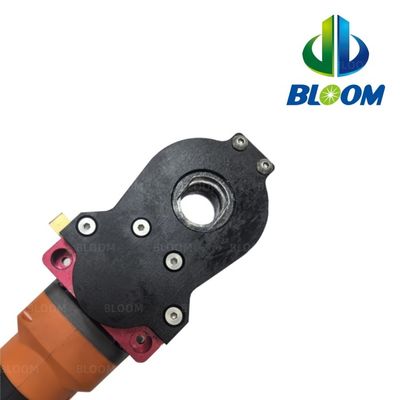

BLM High Quality Lithium Battery Brushless Electrode Cap Grinder Single Side Tip Dresser for Spot Welding Electrode Caps Tips 0

product name  single side electric tip dresser
power source lithium battery power supply
grinding maximun diameter 18mm (it need to be matched according to the tool holder)
speed 1600 r/min
battery capacity 24V - 10A
weight

2.35kg


Welding provide holders and cutters for most common tip dressers and for the majority of electrodes that are in accordance with global industry standards.manual tip dresser, also supply all kinds of cutter.

It can cut various shapes and angel electrode. Easy to operate and good grinding quality.
Accept customized cutter according to clients' requirements.

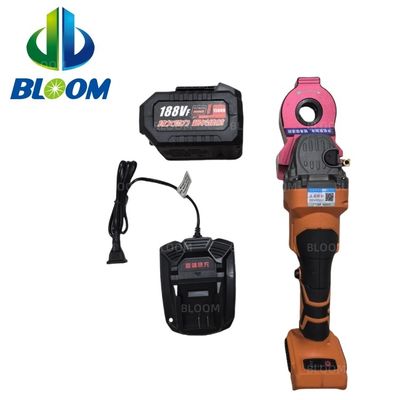

BLM High Quality Lithium Battery Brushless Electrode Cap Grinder Single Side Tip Dresser for Spot Welding Electrode Caps Tips 1

Usage:
1. Install the lithium battery to the tail end of the grinder;
2. Insert one side of the blade into the hole on the wall of the tool box;
3. Place the knife box with the installed blade on the rotating gear;
4. Check the direction of the knife box and align it with the electrode head;
5.Set the required power and speed for the tail switch;
6. After the blade contacts the electrode head, manually press the bottom control grinding button;
7. Apply pressure within the range of rotation during grinding

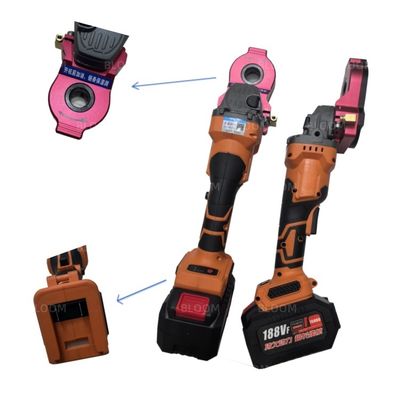

BLM High Quality Lithium Battery Brushless Electrode Cap Grinder Single Side Tip Dresser for Spot Welding Electrode Caps Tips 2
