Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry
Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry
Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry
Product Details:
Place of Origin: Jiangsu,China
Brand Name: BLM
Certification: ISO
Model Number: CUSTOMIZED
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD300-USD3000/pc
Packaging Details: customized wooden case packing based on the order quantity
Delivery Time: 1-3 months
Payment Terms: L/C, T/T
Supply Ability: 700 pcs of barrel per month, and 20meters of screw elements per month
Contact Now
Detailed Product Description
Type: Twin Screw Extruder Applied Industry: Fluoroplastic Industry
Application: Materbatch,plastic,food,chemical Materials: Customized Alloy Nickel Alloy
Charactor: Supper Anti-wear And Anti-corrosion Packing: Export Wooden Case
Delivery Time: 1-3 Months
High Light:

Fluoroplastic Barrel Liner

,

Corrosion Resistant Barrel Liner

,

twin screw elements For Fluoroplastic

Corrosion-Resistant Liner for Food-Grade Extrusion Processes

1.Product Introduction

Linner is usually used inside of the barrrel , near to the screw elements, So its inner wall is easily worn and corroded by materials.

2.New Materials Introduction

Based on long years of experience for the manufacturing, in order to long last the service life of the liner or barrel liner, we developed our special new materials OS02H , a kind of Nickel-Chromium- Tungsten alloy.

Nickel-Chromium- Tungsten alloy has excellent abrasion resistance and corrosion resistance. The increase of Cr content in the nickel-chromium alloy matrix contributes to the oxidation resistance, high temperature resistance and corrosion resistance of the alloy. At the same time, the addition of CrB is better than WC. The microhardness of CrB is as high as 4000-4200DPH, which is close to diamond. It is more conducive to improving the overall strength of the alloy. Due to the high density of WC, it is about 15.7g/cm3, while the matrix of nickel-chromium alloy is only about 8g/cm3. The melting is caused by the uneven surface and depth of the alloy due to the easy segregation of WC, so the content and particle size of WC must be controlled.

Nickel-Chromium-Tungsten alloy( we call OS 02H) hard phase increased to about 50%, OS02 is only ten to thirty,Moreover, the fusion is not sufficient, and the microscopic pores are relatively obvious, which is reflected by the Rockwell hardness HRC of only 52-55.While the Rockwell hardness of nickel chromium tungsten alloy (OS02H) is HRC56-64, the conventional control is HRC58-60. The service life is 3-5 times longer then WR5 or CPM10V.

Nickel-Chromium-Tungsten alloy( OS02H )on the basis of Ni60 in accordance with foreign twin screw working conditions of the formula, greatly improved Hard phase carbides (containing tungsten carbide chromium carbide and other carbides), and the nickel pool fullDissolve. Our Ni-Cr -W alloy layer can reach HRC64 is the best proof.

Main Materials:

NiCrW alloy (Ni60 based on the addition of CrC and CrB)



Main Features:

Wear resistance, corrosion resistance, belongs to the special alloy, hardness in HRC≥57, alloy parent full melt, improve the density, hardness.

Material Parameters Temperature Resistance: Temperature limit 600ºC Alloy Layer Thickness: >=1.8mm Alloy Layer Hardness: 57-64HRC

The Main Process Is Different (from the original sintering process to the current spray welding process) The product has better densification, the hardness can reach more than 57 degrees, and the service life of the product is 3-5 times that of the sintering process.

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry 0

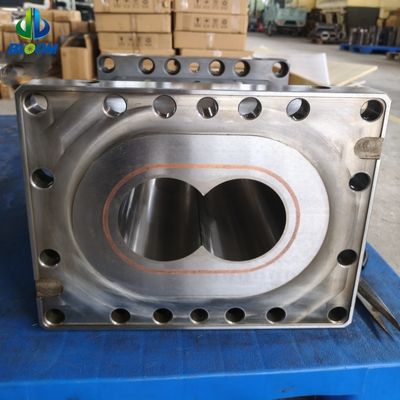

Extruder Accessories 2 - the Barrel

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry 1

Outer barrel + inner liner ( the liner can be replaced) (basically available from 27-87) Material Outside The Barrel: carbon steel the Liner Material: NICRW new materials with oval flat corner liner

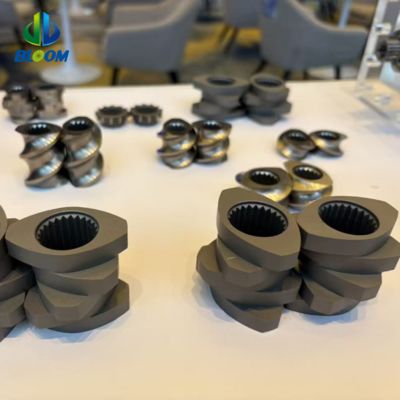

Extruder Accessory 3 - the Screw Elements

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry 2

We can meet your different material needs, customized according to the drawings.

For Wear Application: * Tool Steel : W6Mo5Cr4V2; * PM-HIP material : WR5,CPM10V,CPM9V;
For corrision application: *WR13 WR14
For strong corrision(hy#drofluoric acid) application: *OS22(WJ276), HC276

Other materials: Stainless Steel: 316L,440C etc.



3.Liner Types

Single metal liner,

Bimetallic compound liner,

Sintered process composite liner

spray welding process composite liner.

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry 3

4.Bimetallic Compound Liner Features

Material Parameters Temperature Resistance:

Temperature limit 600℃

Alloy Layer Thickness: ≧1.8mm

Alloy Layer Hardness: 57-64HRC

The Main Process Is Different (from the original sintering process to the current spray welding process) The product has better densification, the hardness can reach more than 57 degrees, and the service life of the product is 3-5 times that of the sintering process.



5.Main Brands Extruder for using the Liner

Twin screw elements available for the following brands
Clextral KraussMaffei Leistritz JSW Buhler
Toshiba Coperion Berstorff Maris KOBE
Wenger CPM

6.Production Equipments
At present, the company’s factory area exceeds 3000 square meters, and an additional 3000 square meters are under planning and design, covering the complete production process of material research and development, main component production, and testing. The company has 6 technical person,over 40 workers, and multiple imported production and testing equipment from Taiwan and Germany.

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry 4

7. Why Choose Us

1) Independent research and development of materials and processes can ensure the performance and process of materials to the maximum extent, and greatly prolong the service life compared with ordinary products, while the main supplier in the market only buy raw materials for machining.

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry 5

2) Independently develop the process of key products, and constantly improve and enhance the old process to achieve the best product performance.
For example, we changed the production process for barrel liner and liner from sintering to spray welding. Which increased the product service life 3-5 times then normal products.

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry 6
3) Continuously improving and optimizing product appearance of the composite layer ,which greatly improved the service life of products.for the separately linner and Barrel Liner, we changed the Composite layer from thin 8 shape to ellipse flat angle shape, which increased the product service life greatly.

Wear and Corrosion Resistant Barrel Liner Twin Screw Elements For Fluoroplastic Industry 7



Bimetallic refers to a material or component composed of two different metals or alloys that are bonded together. The purpose of creating a bimetallic structure is to take advantage of the unique properties and characteristics of each metal.

In the context of extruder screws and barrels, bimetallic construction is commonly used to enhance their wear resistance and durability. Typically, the screw or barrel is made of a base material that provides strength and structural integrity, while a wear-resistant alloy is applied to the surface that comes into contact with the material being processed.

The wear-resistant alloy is selected based on its ability to withstand the abrasive and corrosive forces encountered during extrusion. Common materials used for the wear-resistant layer include high-carbon steel, tool steel, tungsten carbide, or other hard alloys. These materials have excellent hardness and resistance to wear, increasing the lifespan of the screw or barrel.

The bimetallic construction allows for the combination of the desirable properties of both materials. The base material provides strength and support, while the wear-resistant alloy protects against abrasion and extends the working life of the extruder screw or barrel.

Overall, bimetallic construction is an effective method to improve the performance and longevity of extruder screws and barrels, reducing downtime and maintenance costs in the extrusion process.

Bimetallic Nickel refers to a type of composite material composed of two layers: a nickel base layer and a second layer consisting of another metal or alloy. The nickel base layer provides the structural integrity and corrosion resistance, while the second layer adds specific properties or functionalities.

Bimetallic Nickel materials are used in various applications where the combination of nickel’s excellent properties with those of another metal or alloy is desirable. This composite material allows for improved performance, durability, and cost-effectiveness compared to using pure nickel or other metals alone.

Some common examples of bimetallic nickel materials include nickel-clad steels, nickel-aluminum composites, and nickel-copper alloys. These materials find applications in industries such as electrical engineering, electronics, automotive, aerospace, and more.

The specific properties imparted by the second layer can vary depending on the intended application. For example, the addition of aluminum can enhance heat dissipation and reduce weight, while copper can improve electrical conductivity. The choice of the second layer material depends on the desired characteristics required for a particular application.

In summary, bimetallic nickel refers to a composite material that combines the properties of nickel with another metal or alloy. It offers enhanced performance and versatility in various industries and applications.



FAQ:

Q1. What's your MOQ?
1PC or SET

Q2. Can I place the customized order for different sizes, materials, structure….?
Yes, all customized orders are welcomed.

Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.

Q4. Can I have our own logo or label on our product?
Yes,we can laser your logo or code number on your product.

Q5. How long is your guarantee?
1year,2 years,5 years base on different requirement.

Q6. How to reach you for other questions?
Please feel free to contact us through E-mail, call or visiting our factory.
