Nitride And Bimetallic Screw Barrel 38CrMoAIA For Extruders

1set
MOQ
Negotation
Price
Nitride And Bimetallic Screw Barrel 38CrMoAIA For Extruders
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Jiangsu,China
Material: 38CrMoAIA
Spare Parts: Spare Parts For Screw Extruders
Center Distance: 26mm
Dimension: 120x135x115mm
After Warranty: Video Technical Support ,online Support
Highlight:

38 CroMA Bimetallic Screw Barrel

,

Nitride Bimetallic Screw Barrel

,

Bimetallic Barrel Twin Screw Extruder Parts

Basic Infomation
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLOOM
Payment & Shipping Terms
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 5-10 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000pc/pcs per Month
Product Description

Nitride And Bimetallic Screw Barrel Solution Extending The Service Life



Description:

Screw and barrel produced by BLOOM are all have quenching and nitride process. We have

been dedicated ourselves to find method of anti-corrosion and anti- abrasion.





1. The steel we use to manufacture screw and barrel is 38 CrMoAl.



2. Nitride and quenching process:

   Hardness after quenching: HB280-320

   Hardness after nitride :> HV950

   Nitride depth: 0.5mm-0.8mm

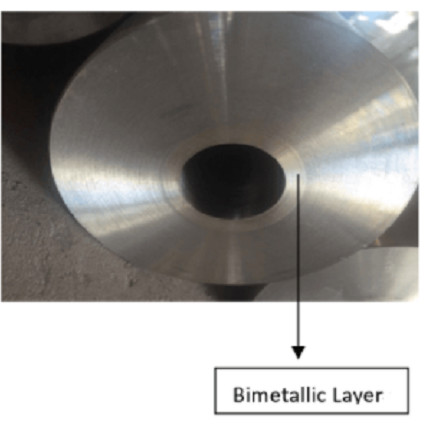

3. Bimetallic screw barrel

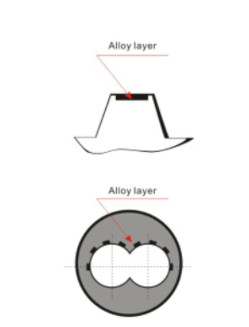

A. The flights of screw are grooved and bimetallic layer is coated by spray wielding method.

    Nickel based alloy powder is applied.



Nitride And Bimetallic Screw Barrel 38CrMoAIA For Extruders 0

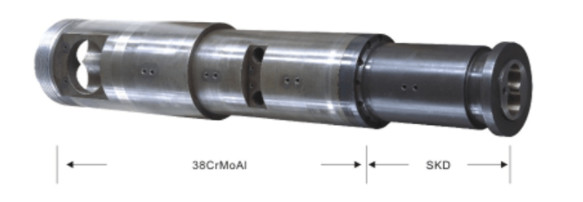

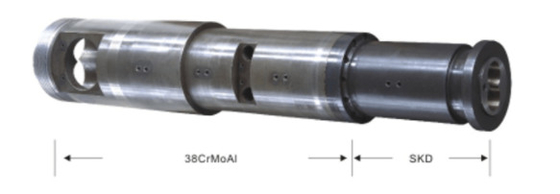

B. SKD 61 is a kind of steel imported from Japan which is even more durable than normal bimetallic barrel. We use SKD steel to the wearing part of barrel as shown in the below picture. This high cost application is usually required in formulations with high percentage of fillers such as calcium and glass fiber or WPC.





Application:WPC



Nitride And Bimetallic Screw Barrel 38CrMoAIA For Extruders 1

C.Spin casting (Applied in single barrel)

Spin casting coating method is used in single barrel as shown below.



Nitride And Bimetallic Screw Barrel 38CrMoAIA For Extruders 2
