Invar 36, also known as FeNi36, is a nickel-iron, low-expansion alloy containing 36% nickel. It has a low coefficient of expansion from cryogenic temperatures to about 260°C. In the dry air at home temperature, invar 36 has good resistance to corrosion. But in moist air, it may go corrosion.
Invar 36 is suitable for the applications who require low coefficient of expansion, such as production, storage and transportation of liquid gas, temperature regulation devices working below 200°C, aperture mask, unit frameworks working below -200°C and so on.
Ferro nickel alloy: FeNi36, FeNi36, Permalloy ((1J79, 1J86, 1J85), 4J29(Kover), 79Ni4MoFe, 80Ni5MoFe, 1J50 (Ni50)
Size Range
Wire: 0.1mm-9mm
Bar: 11mm-200mm
Strip: 75-110mm*0.15-22mm
Chemical Composition
| Grade | C% | Si% | P% | S% | Mn% | Ni% | Fe% |
| Invar 36 | Max0.05 | Max0.30 | Max0.020 | Max0.020 | 0.20-0.60 | 35-37 | Balance |
Specification
| Grade | UNS | Werkstoff Nr |
| Invar 36 | K93600 | 1.3912 |
Physical Properties
| Grade | Density | Metlting Point |
| Invar 36 | 8.1g/cm3 | 1430C |
Coefficient Expansion
| 20-50C | 20-100 | 20-200C | 20-300C | 20-400C | 20-500C |
| 0.6 | 0.8 | 2.0 | 5.1 | 8.0 | 10.0 |

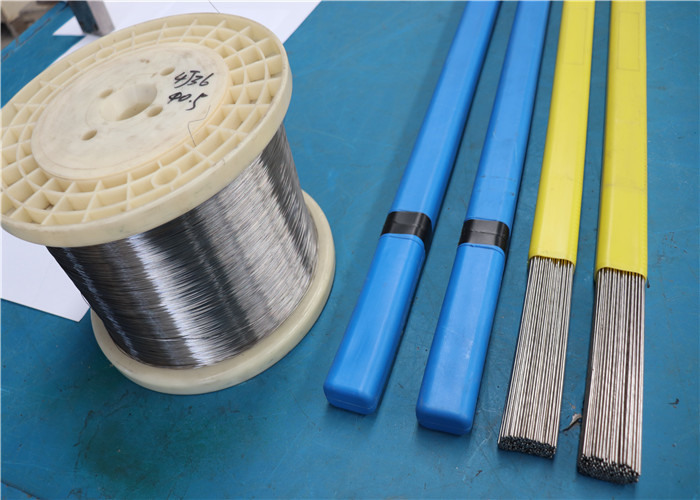

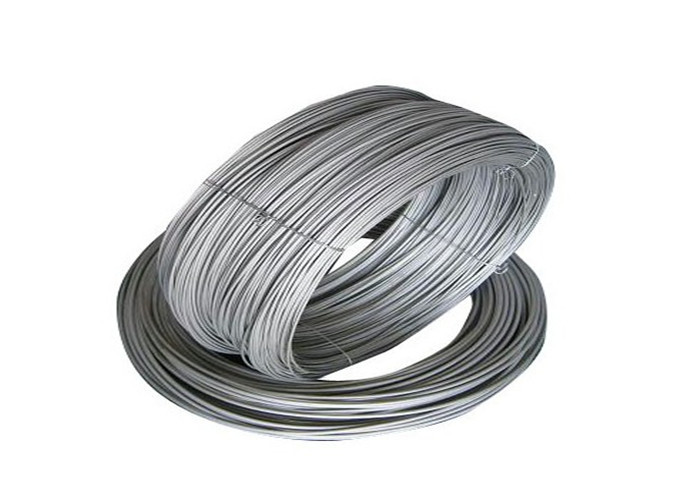

More pictures and packing details.
