Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-kcf-1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: FobShanghai usd 3.5-5/pc
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000 pc/pcs per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu,China Type: Ceramic Parts
Application: Industrial Ceramic Material: Silicon Nitride
Processing Service: Welding,Cutting,Moulding,CNC Color: Grey
Compressive Strength: 488 Mpa Density: 3.24g/cm3
Thermal Conductivity: 15 W/m.k Hardness: 18 Gpa
High Light:

Welding Silicon Nitride Ceramic Pin

,

Industrial Silicon Nitride Ceramic Pin

      Si3N4 Customized Silicon Nitride Ceramic Tube, High Hardness And High Temperature Resistant Ceramic Parts



1 . Descriptions:

Silicon nitride ceramics is an inorganic material that does not shrink during sintering and is an important structural material. Silicon nitride has high strength and is one of the hardest substances in the world. It has lubricity, and has properties such as wear resistance, high strength, low density, and high temperature resistance. Silicon nitride has a low thermal expansion coefficient and high thermal conductivity, so it has excellent thermal shock resistance. Silicon nitride will not crack when heated to 1000°C and put into cold water. It is extremely resistant to high temperatures, and its strength can be maintained to a high temperature of 1200°C without falling. It will not melt into a melt after being heated, and will not decompose until 1900°C. It also has amazing chemical corrosion resistance. Except for hydrofluoric acid, it does not react with other inorganic acids or caustic soda solutions below 30%, and it is also resistant to corrosion by many organic acids. At the same time, it is a high-performance electrical insulating material. It is precisely because of the excellent characteristics of silicon nitride ceramics that it is more appropriate to replace alloy steel with silicon nitride ceramics in those places where high strength, low density, and high temperature resistance are required. People often use it. To manufacture bearings, turbine blades, mechanical seal rings, permanent molds and other mechanical components.

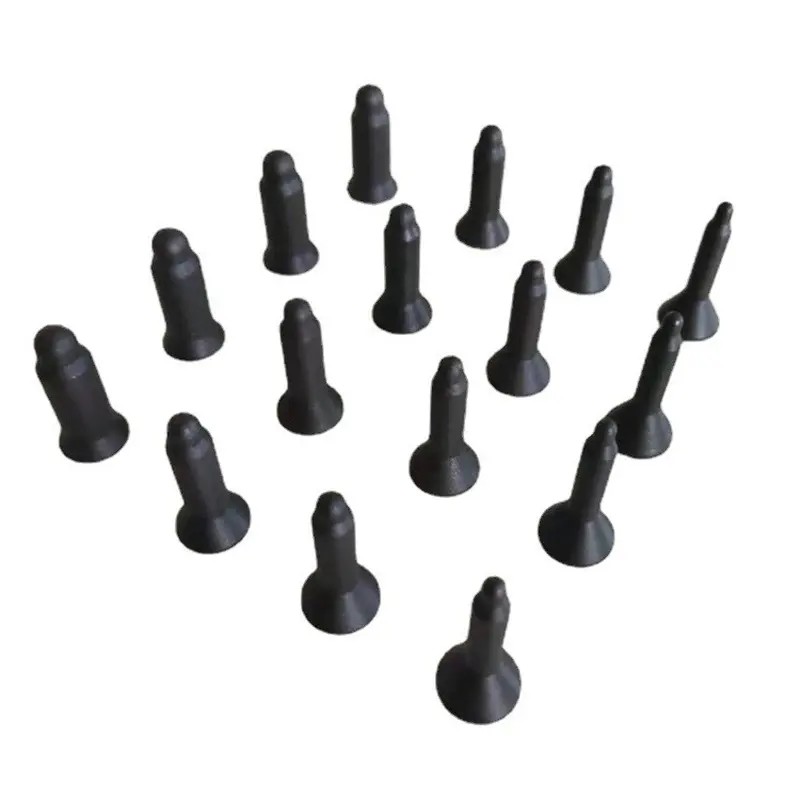

Industrial Ceramic Parts Produce And Stock Silicon Nitride Ceramic Pin 0

Silicon nitride (Si3N4) contains three crystal forms, and two crystal forms are common. One is α-Si3N4, needle-like crystal, which is white or off-white, and the other is β-Si3N4, which is darker in color and is dense granular polyhedron or short prism. Both are hexagonal.



A longer stacking order leads to a higher hardness of the α phase than the β phase. However, the α phase is chemically unstable compared to the β phase. So at the high temperature of the liquid phase, the α phase always transforms into the β phase. Therefore, β-Si3N4 is the main form used in silicon nitride ceramics.



Property





Item



99%

Alumina



99.8%

Alumina



Zirconia Ceramics



Silicon Nitride



Silicon Carbide



Unit



Mechanical Characteristics


Color
light yellow

White


Ivory
Black
Grey


Black

Bulk Density 3.85 3.93 6.02 3.2 3.16 g/cm3
Water Absorption 0 0 0 0 0 %
Bending Strength 310 370 800 750 450 MPa
Compressive Trength 2,400 2500 3000 3800 3900 MPa
Elastic Modulus 340 390 200 290 420 GPa
Fracture Toughness 3~4 4 8 7 3.5 MPa m1/2
Weber Coefficient 12 12 15 15 - m
Vickers Hardness 1,600 1850 1200 1700 2800 HV 0.5


Thermal Characterics
Coefficient of Line Thermal
Expansion


7~8


7~8


10


2


3.7


10-6 K-1
Thermal Conductivity 29 32 3 20 160 W/mK
Thermal Shock Resistance
(Put in Water)


200


280


300


750


-


ΔT °C
Max Working Temperature

1,600


1700


1000


1300


1950


°C


Electrical Characteristics
Volume Resistance At 20°C

>1014


>1014


>1013


>1014


-


Ωcm
Dielectric Strength 15×106 15×106 11×106 10×106 - V/m
Dielectric Constant 10 10 33 - - εr
One MHZ Dielectric Loss Angle
at 20°C


0.0002


0.0001


0.0016


-


-


tanδ


Chemical Characteristics
Nitric Acid (60%) 90°C 0.1 0.05 ≒0.00 1 ≒0.00

24H WT Loss mg/cm2
Sulphuric Acid (95%) 95°C 0.34 0.22 0.04 ≒0.00 ≒0.00
Caustic Soda (30%) 80°C 0.95 0.04 0.08 0.2 ≒0.00



2 . Performance characteristics of silicon nitride materials



A . Physical properties of silicon nitride:

a . Thermal properties: It is a high-temperature refractory substance with no melting point. It decomposes at about 1900°C under normal pressure. It has strong creep resistance under high pressure. The softening point of reaction sintered silicon nitride without binder can be as high as 1800°C;

b . Good thermal conductivity;

c . Small thermal expansion coefficient;

d . Good electrical insulation performance, small dielectric coefficient, high breakdown voltage.



B . Chemical properties of silicon nitride:

a . Oxidation resistance: It does not react with oxygen in a dry atmosphere below 800 °C;

b . Molten metal corrosion resistance: silicon nitride does not infiltrate and corrode elemental metal melt (except copper);

c . Resistance to acid, alkali and salt corrosion: easily soluble in hydrofluoric acid, and ineffective with dilute acid.



C. Mechanical properties of silicon nitride:

a . High temperature strength is good, and the high temperature strength at 1200°C has little attenuation compared with the room temperature strength. In addition, its high temperature creep rate is very low. These are determined by the nature of strong covalent bonds;

b .  High hardness, second only to a few superhard materials such as diamond, cubic BN, and B4C;

c . The friction coefficient is small and self-lubricating, which is similar to the metal surface with oil.





3 . Application of silicon nitride ceramics

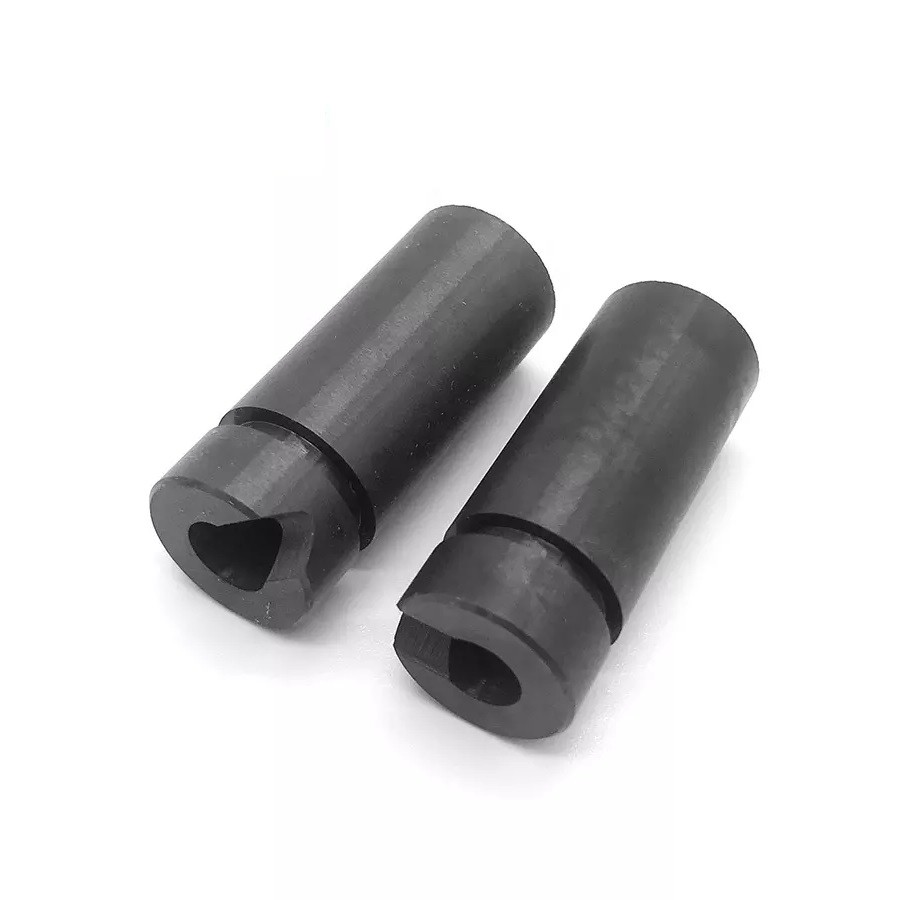

Industrial Ceramic Parts Produce And Stock Silicon Nitride Ceramic Pin 1

Automotive industry: The main application of sintered silicon nitride is in the automotive industry as an engine part material. In spark ignition engines, silicon nitride is used for lower wear rocker pads, turbochargers for lower inertia and less engine lag, and waste gas control valves for increased acceleration.



Bearings: Compared with other ceramics, silicon nitride ceramics have good impact resistance. Therefore, ball bearings made of silicon nitride ceramics are used in performance bearings. A representative example is the use of silicon nitride bearings in the main engines of NASA's space shuttles. Since silicon nitride ball bearings are harder than metal, this reduces contact with the bearing track. Silicon nitride ball bearings can be found in high-end automotive bearings, industrial bearings, wind turbines, motorsports, bicycles, roller skates and skateboards.



Metal cutting tools: Bulk monolithic silicon nitride is used as a material for cutting tools due to its hardness, thermal stability and wear resistance. Especially recommended for high speed machining of cast iron. Hot hardness, fracture toughness and thermal shock resistance mean that sintered silicon nitride can cut cast iron, hard steel and nickel-based alloys.



Electronics: Often used as insulators and chemical barriers in the manufacture of integrated circuits to electrically isolate different structures or as etch masks in bulk micromachining. As a passivation layer for microchips, it is superior to silicon dioxide because it is a significantly better diffusion barrier to water molecules and sodium ions, two major sources of corrosion and instability in microelectronics.



Core copper wire power cable, each core has an individual colored insulating sheath, all contained within an outer protective sheath. Suspend strings of insulator insulators (vertical lines of discs) on high voltage suspension towers.





Material Datesheet
Properties Units Silicone Nitride
Mechanical Density gm/cc 3.2
Porosity % 0
Flexural Strength Mpa 830
Compressive Strength Mpa 2500
Elastic Modulus Gpa 310
Poisson's Ratio / 0.27
Hardness kg/mm2 1580
Fracture Toughness KIC Mpa *m 1/2 6.1
Thermal Heat Conductivity W/ m*k 30
Coefficient of Thermal Expansion 10-6/K 3.3
Specific Heat j/kg*K /
Thermal Shock Resistance °C /
Max UseTemperature °C 1400
Electrical Dielectric Strength ac-kv/mm /
Dielectric Constant / 8
Loss Tangent / /
Volume Resistivity ohm•cm >1014

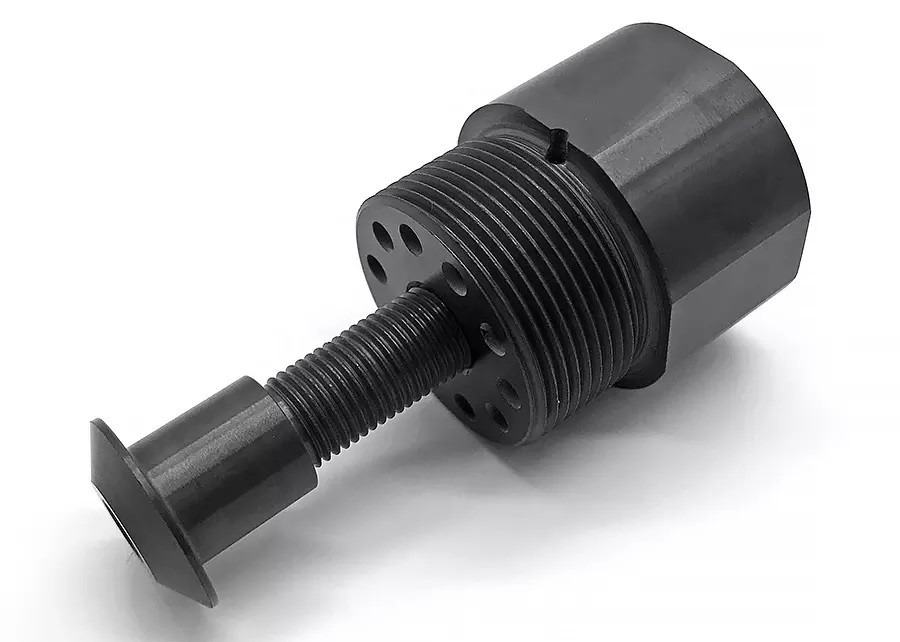

Industrial Ceramic Parts Produce And Stock Silicon Nitride Ceramic Pin 2

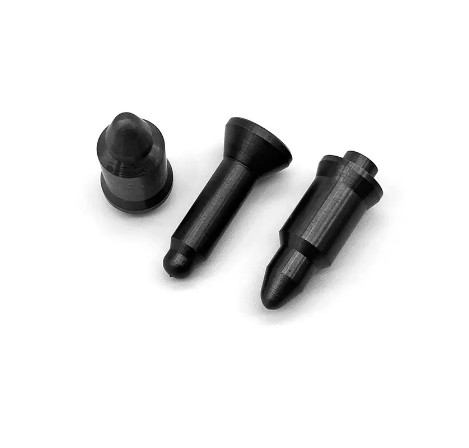

Industrial Ceramic Parts Produce And Stock Silicon Nitride Ceramic Pin 3

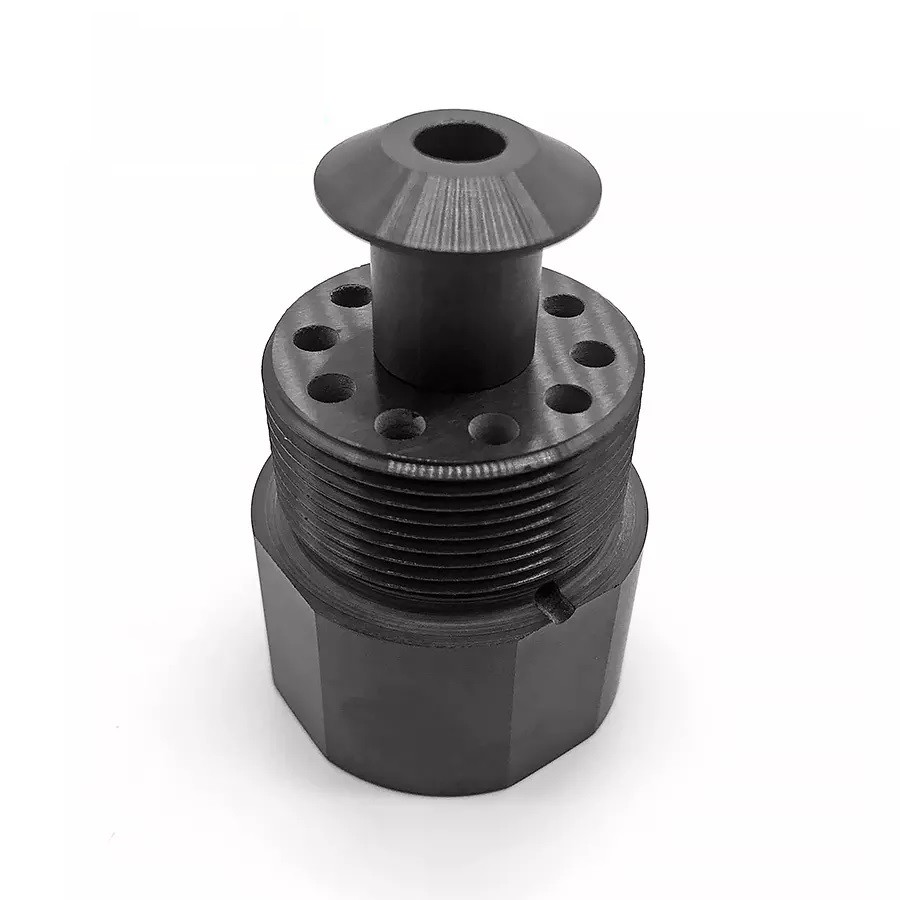

Industrial Ceramic Parts Produce And Stock Silicon Nitride Ceramic Pin 4

Industrial Ceramic Parts Produce And Stock Silicon Nitride Ceramic Pin 5
