Name: Twin Screw Extruder Flight Shovel Elements Used In Feeding Section
Brand: Bloom
SKU: BLM-S
Rating: 4.7 (179 reviews)

Home Products Twin Screw Extruder Parts

Twin Screw Extruder Flight Shovel Elements Used In Feeding Section

Product Details:

Place of Origin:	China
Brand Name:	Bloom
Certification:	ISO 9001
Model Number:	BLM-S

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negetation
Packaging Details:	Packing with plastic bags
Delivery Time:	30 to 45 days
Payment Terms:	T/T
Supply Ability:	10pcs per month

Contact Now

Detailed Product Description

Material:	W6Mo5Cr4V2;WR5;WR13	Screw Type:	Double
Product Name:	Twin Screw Extruder	Application:	Plastic Industry Wood Plastic Inflated Food Power Coating
Surface Treatment:	Vacuum Quenching	Machine:	Plastic Wood Food Twin Extruder Machine
High Light:	W6Mo5Cr4V2 Twin Screw Extruder , Vacuum Quenching Twin Screw Extruder , Flight Shovel Twin Screw Extruder Parts

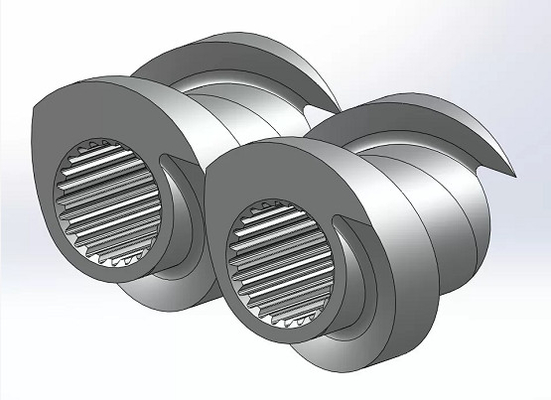

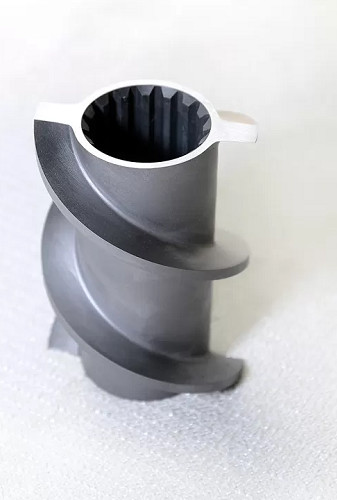

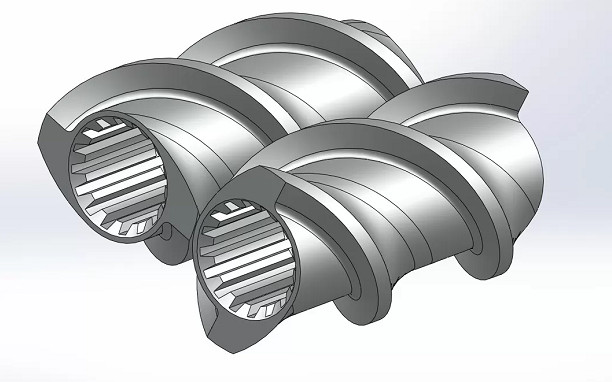

The Single Flight Shovel Elements Used In The Feeding Section Of The Twin-Secrew Extrudr

1 . Description

The single-fighted screw element is mostly used in the feeding section of the twin-screw extruder. This is to increase the storage space in each lead, that is, to have greater screw free volume in the space of the same diameter and length, to make the newly added material transfer faster. There is also commonly used in the feeding and conveying of powder materials with a particularly low bulk density to compensate for the decrease in the output of the twin screw host. The cross section of this screw sleeve is sickle-shaped, which can still ensure the self-cleaning of the two screw teeth in the axial and normal directions.

2 . Technical Details of Single-fighted Screw Elements

Brand: Bloom

Model:φ20 mm ~φ300 mm

Material:38CrMoALA / W6Mo5Cr4V2 / HIP

Properties: Wear-resisting, Corrode-resisting and durable

Application: Extruder

3 . Single-fighted Screw Elements Function

Excellent performance on conveying material
Short and defined residence time
Good self-wiping characteristics

4 . Processing characteristics of Single-fighted Screw Elements

All component materials are purcharsed from professional material supplier. To ensure quality of raw materials, element and metallographic analysis are coducted.
All components are finished by CNC grinding.
Professional technical team can provide surveying and mapping business.
