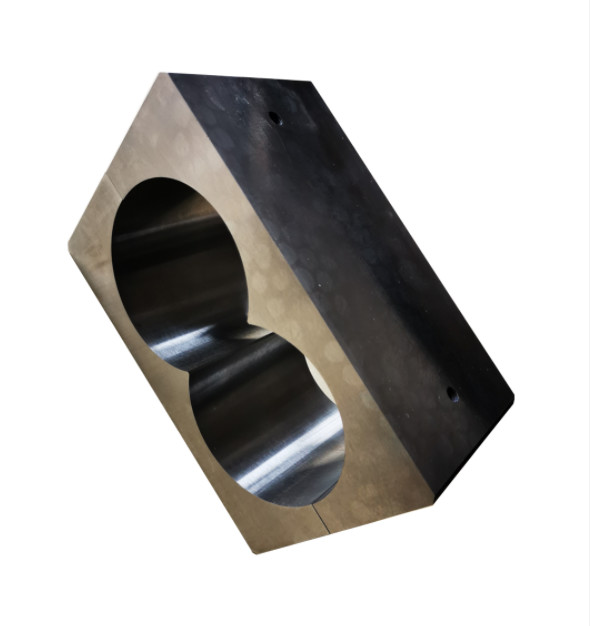

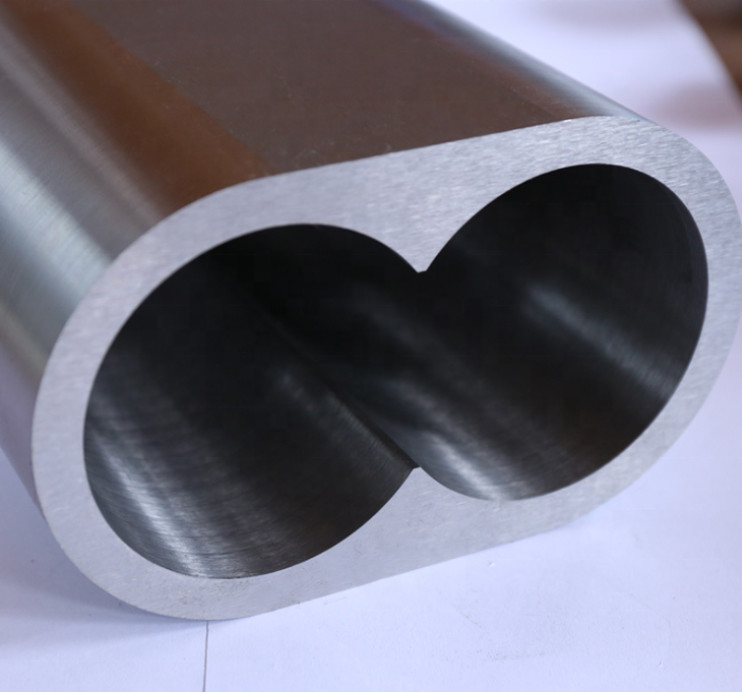

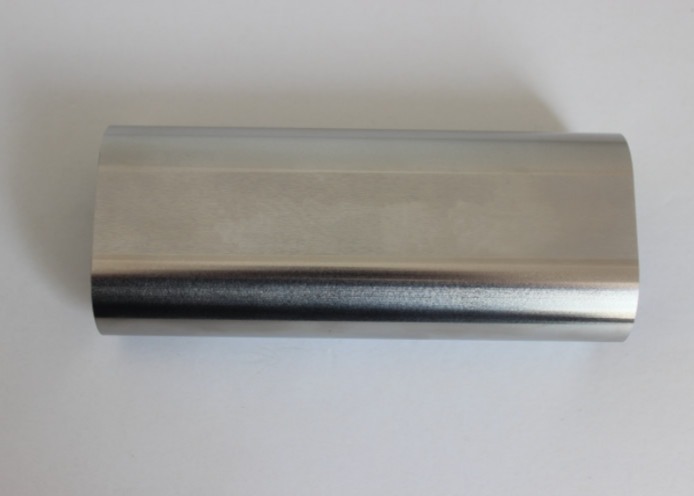

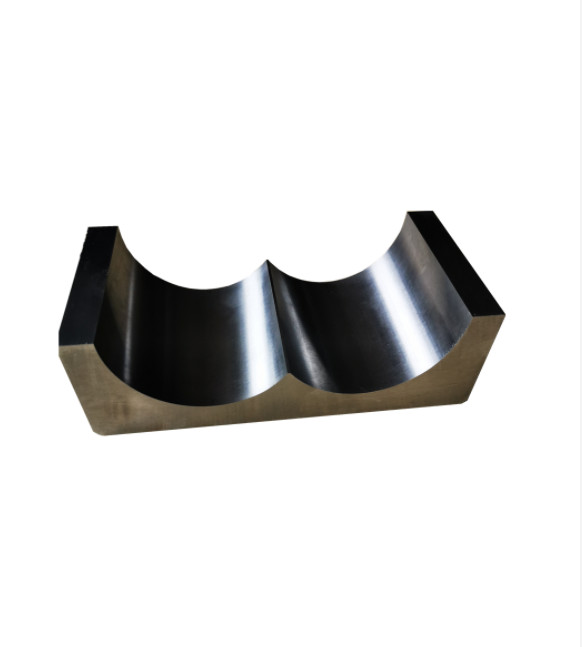

Tungsten Carbide Coating Liner For Plastic Extruder Machine

Tungsten Carbide Coating Liner For Plastic Extruder Machine

  • Tungsten Carbide Coating Liner For Plastic Extruder Machine
  • Tungsten Carbide Coating Liner For Plastic Extruder Machine
  • Tungsten Carbide Coating Liner For Plastic Extruder Machine
  • Tungsten Carbide Coating Liner For Plastic Extruder Machine
Tungsten Carbide Coating Liner For Plastic Extruder Machine
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-IV-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu,China Material: 316L/X260/W6Mo5Cr4V2 Or Customized
Spare Parts Type: Spare Parts For Twin Screw Exruder Application: Machinery Repair Shops,Food An Beverage Factory
Center Distance: 26mm Screw Distance: 30mm
Dimension(LxWxH): 120x135x115mm After Warranty Service: Video Technical Support,online Support
High Light:

Liner Twin Screw Extruder Parts

,

Tungsten Carbide Coating Liner

,

Plastic Extruder Machine Ni Alloy Liner

 Factory Direct Offer Tungsten Carbide Coating Liner For Plastic Extruder Machine

1 . Description :

The barrel produced by our company is mainly made of the following two materials: (1) Bimetal bushing +45# steel housing This kind of cylinder produced by our company is made of domestic alloy bushing. It is characterized by strong wear resistance. The advantage is easy to repair, so as to reduce the user's use cost. (2) 38CrMoAIA nitrided steel cylinder Mainly good corrosion resistance



2 . size :



Code No Description Materials Alloy Thickness Application
BLM-01 Ni-Alloy Liner  Ni-Alloy  5-20mm Extruder machine
BLM-02 Bimetallic Liner  Steel + Ni Alloy  2-3mm Extruder machine
BLM-03 Steel Liner  Steel  5-20mm Extruder machine



3. Screw and barrel barrel screw extruder screw barrel processing:

   Raw material - brand - testing - machining - grinding process - antirust process - products - packing - delivery to your hand



4. Customized desgin:

   We can satisfy your different material needs :

   According to appearance design , closed barrel,open barrel , side feeder barrel , combi barrel

   According to the liner , with liner barrel , without liner barrel

  According to Material:

  For wear application :C liner , Cr26 , Cr12Mov ; W6Mo5Cr4V2

  For corrosion application : 38CrMoAl , Hac alloy



NO Model Size  WxHxL(mm) Holder Diameter(mm) Center Distance D
1 20 115x105x132 Φ23 18.4
2 30 135x115x120 Φ30.6 26
3 35 140x120x140 Φ30 30
4 36 160x140x150 Φ36 30
5 40 175x145x160 Φ41.6 34.5
6 50 190x150x190 Φ51 42
7 52 200x155x210 Φ52 43
8 53 210x160x220 Φ53.3 48
9 58 220x175x240 Φ58 48
10 60 210x170x240 Φ60 52
11 65 210x170x240 Φ63 52

Tungsten Carbide Coating Liner For Plastic Extruder Machine 0
