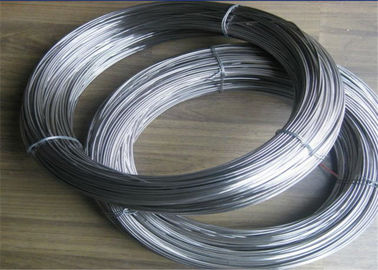

Uns N05500 Monel Nickel Alloy 500 Wire With Outstanding Corrosion Resistance

Uns N05500 Monel Nickel Alloy 500 Wire With Outstanding Corrosion Resistance

  • Uns N05500 Monel Nickel Alloy 500 Wire With Outstanding Corrosion Resistance
Uns N05500 Monel Nickel Alloy 500 Wire With Outstanding Corrosion Resistance
Product Details:
Brand Name: BLM-ML-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300 Ton/Tons per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu, China (Mainland) Standard: AISI, ASTM, BS, DIN, GB, JIS, Other,JIS,AISI,ASTM,GB,DIN,EN
Grade: Monel Nickel Alloy Technique: Hot Rolled
Surface Treatment: Bright Or Black Application: Electrical Industry
Delivery: 25-30 Days After The Payment Price Term: Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU
High Light:

n05500 nickel alloy

,

monel k500 sheet

Monel 500 WIRE





Descripition:



MONEL®alloy K-500 (UNS N05500/ W.Nr. 2.4375) is a nickel-copper alloy which combines the excellent
corrosion resistance of MONEL alloy 400 with the added advantages of greater strength and hardness.

The increased properties are obtained by adding aluminum and titanium to the nickel-copper base,

and by heating under controlled conditions so that submicroscopic particles of Ni 3 (Ti, Al) are precipitated

throughout the matrix. The thermal processing used to effect precipitation is commonly called age hardening or aging. The composition of the alloy is given in Table 1. Typical applications for MONEL alloy K-500
products are chains and cables, fasteners and springs for marine service; pump and valve components for
chemical processing; doctor blades and scrapers for pulp processing in paper production; oil well drill
collars and instruments, pump shafts and impellers, non-magnetic housings, safety lifts and valves for oil
and gas production; and sensors and other electronic components.







Monel K-500 Chemical composition:

Alloy % Ni Cu Al Ti Fe Mn S C Si
Monle K500 Min. 63 27.0 2.30 0.35
Max.   33.0 3.15 0.85 2.0 1.5 0.01 0.25 0.5


Monel K-500 Physical properties:

Density 8.44 g/cm3
Melting point 1315-1350°C


Monel K-500 minimum mechanical properties in the room temperature:

Forms Condition Max. section Thickness,in.(mm) Tensile strength Min. Ksi.(Mpa) Yield strength Min.Ksi.(Mpa) Elongation in 2 in,or 4D,min.,% Hardness
HB min. HRC min.
Round bars, Hexagons, squares, rectangles and forgings hot-worked and age hardened All Sizes 140(965) 100(690) 20 265 27
Round bars cold worked and age hardened 1/4(6.4)to 1(25.4) 145(1000) 110(760) 15 300 32
over 1(25.4)to 3(76.2) 140(965) 100(690) 17 280 29
over 3(76.2)to 4(101.6) 135(930) 99(655) 20 255 25
Hexagons cold worked and age hardened 1/4(6.4)to 2(50.8) 140(965) 100(690) 15 265 27
Round bars, Hexagons, squares, rectangles and forgings Annealed and age hardened Up to 1(25.4) 130(895) 90(620) 20 250 24
1(25.4)and over 130(895) 85(585) 20 250 24has approximately twice the tensile strength and triple the yield strength of Alloy 400. The strength of Alloy K-500 is maintained to 1200 degrees Fahrenheit, but stays ductile and tough down to temperatures of -400 degrees Fahrenheit. Alloy K-500 also stays non-magnetic to -200 degrees Fahrenheit.





Additional characteristics of Alloy K-500 include outstanding corrosion resistance in a wide range of chemical and marine surroundings, from salts and alkalis, non-oxidizing acids to pure water. Alloy K-500 is non-magnetic and spark resistant. It is also recommended that Alloy K-500 be annealed when it is welded and that any weldments be stress relieved prior to aging.

I





Industries Served:







Uns N05500 Monel Nickel Alloy 500 Wire With Outstanding Corrosion Resistance 0

  • gas & oil extraction

  • chemical processing

  • marine engineering

  •
