Place of Origin: | Jiangsu,China |
Brand Name: | BLM |
Certification: | ISO |
Model Number: | BLM-S |
Minimum Order Quantity: | 100kgs |
---|---|
Price: | Negtation |
Packaging Details: | Packing with wooden box |
Delivery Time: | 25days |
Payment Terms: | T/T |
Supply Ability: | 5 tons per month |
Place Of Origin: | Jiangsu,China | Type: | Invar 36 |
---|---|---|---|
Application: | Electric Industry | Material: | 4J36 |
Size: | Standard Or According To Customers' Drawings | Surface: | Bright |
High Light: | 4j36 Frame Low Expansion Alloy,Hot Rolled Sheet Low Expansion Alloy,Invar 36 Frame Low Expansion Alloy |
Hot Rolled Sheet Precision Low Expansion Alloy 4j36 Frame Invar36 Feni36 Frame
1 . Description
Invar, also known as Nickel Alloy 36, is a nickel-iron alloy noted for its uniquely low coefficient of thermal expansion. The name Invar comes from the word invariable, due to its relative lack of expansion or contraction with temperature changes. Invar was invented in 1896 by Swiss scientist Charles Édouard Guillaume, who received the Nobel Prize in Physics in 1920 for the discovery, which enabled improvements in scientific instruments. Invar is an austenitic alloy. It is strong, tough, ductile and possesses a useful degree of corrosion resistance. It is magnetic at temperatures below its Curie point and non-magnetic at temperatures above. Invar is therefore always magnetic in the temperature range in which it exhibits the low expansion characteristics. Invar is the standard alloy for low expansivity up to 400 oF. For applications at higher temperatures, the higher nickel alloys are recommended.
Product Name | Invar 36 Plate ASTM,ASTM GB |
Type | Invar Plate |
Surface Treatment | Black |
Application | petrochemical industry |
Inventory | INVAR 36 Plate, INVAR 36 Weld Wire |
Features | Low expansion rate up to 500°F |
Specifications | AFNOR NF A54-301 (chemistry only), ASTM F 1684-06, EN 1.3912, UNS K93600, UNS K93603, Werkstoff 1.3912 |
Common Trade Names | Nilo 36 |
Place of Origin | Jiangsu, China (Mainland) |
Delivery | 25-30 days subject to the clients' requirements and quantity |
2 . Tensile Strength (Strip & Sheet)
Termper Designation | Terper Name | Mpa |
A | Anealed | 586,Max |
B | 1/2 Hard | 593,Min |
C | Hard | 724,Min |
3 . Physical properties
Density | 8.1g/cm³ |
Melting point | 1430 ℃ |

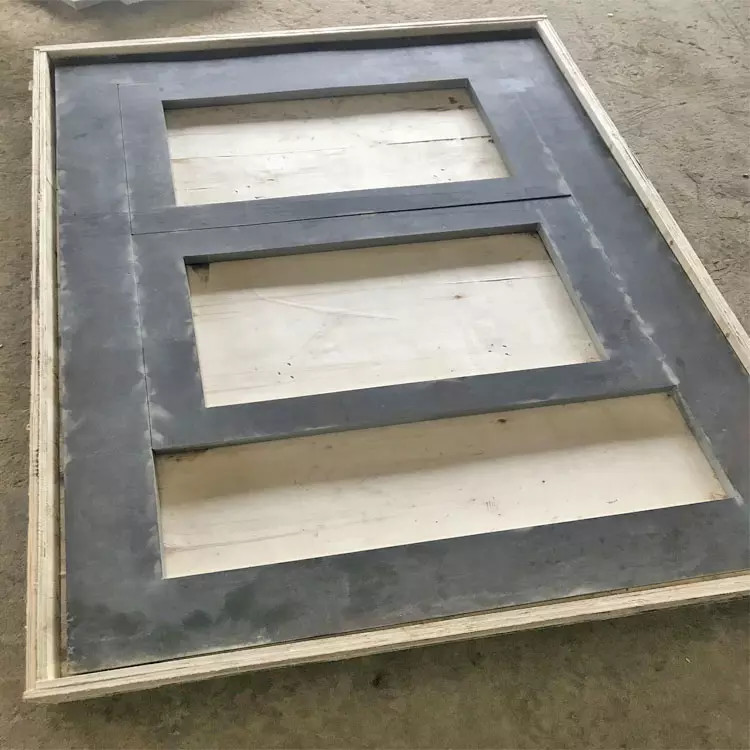

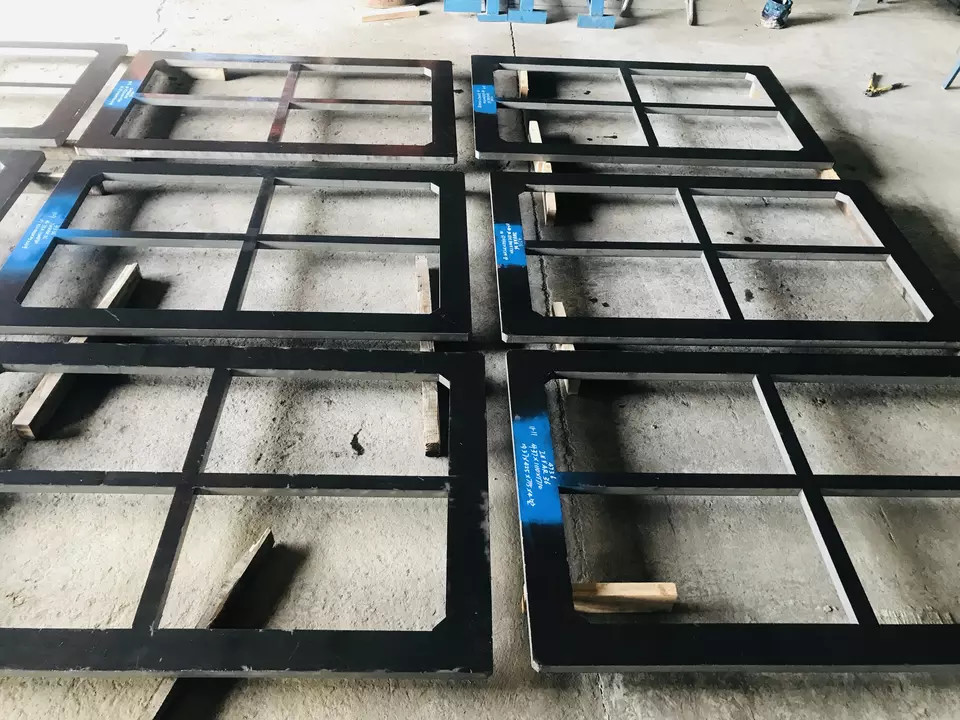

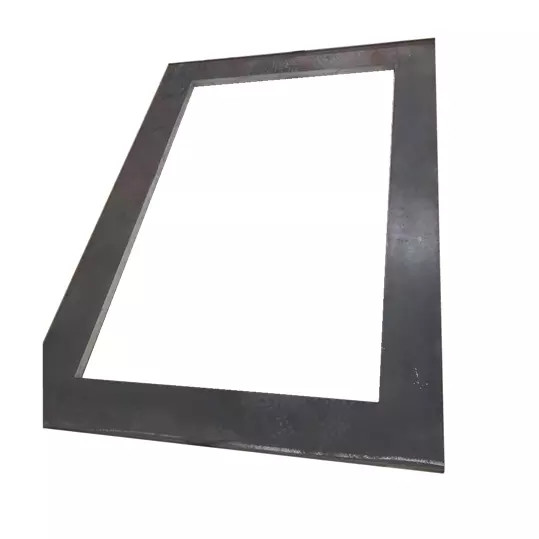

4 . Pictures
