High Wear Resistance Screw Elements Spare Parts For Twin Screw Extruder

Quality High Wear Resistance Screw Elements Spare Parts For Twin Screw Extruder factory
Quality High Wear Resistance Screw Elements Spare Parts For Twin Screw Extruder factory
Quality High Wear Resistance Screw Elements Spare Parts For Twin Screw Extruder factory

Basic Properties

Place of Origin:Jiangsu, China (Mainland)
Brand Name:BLM-IV-1

Trading Properties

Minimum Order Quantity:Negotiation
Price:Negotiation
Standard Packaging:packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time:25-30 days subject to the clients' requirement and quantity
Payment Terms:Western Union, L/C, T/T
Supply Ability:1000 per Month
Specifications
Place Of Origin: Jiangsu,China Material: 316L/X260/W6Mo5Cr4V2 Or Customized
Spare Parts Type: Spare Parts For Twin Screw Exruder Application: Machinery Repair Shops,Food An Beverage Factory
Center Distance: 26mm Screw Distance: 30mm
Dimension（LxWxH): 120x135x115mm After Warranty Service: Video Technical Support,online Support
Highlight

Screw Elements Spare Parts

,

High Wear Resistance Screw Elements

,

Twin Extruder Screw Element
Product Description

 Good Quality High Wear Resistance Screw Elements Spare Parts for Twin Screw Extruder

1. Descriptions

The twin screw extruder are built on a modular system. Screw elements with different length and function are mounted to the main splined shaft. The screw combination are changeable. Thus, with a few screw elements and barrel variation, different processing tasks can be finished on the same machine. Besides,when part of screw element,liner or barrel wear out, we only need to replace the broken parts instead of replacing the whole screw or barrel. Maintenance cost saves/





2 . Twin screw extruder screw element materials:

Material Description hardness
W6Mo5Cr4v2 Hardened tool steel  58~60HRC
Cr12MoV Hardened alloy steel  58~60HRC
SAM 10/CK 45 Power alloy bimetallic mateial 58~62HRC
38CrMoAIA Nitrided steel  >HV940
440C Food grade stainless steel  54~56HRC
C-276 Hastelloy  180HB





3. Pictures

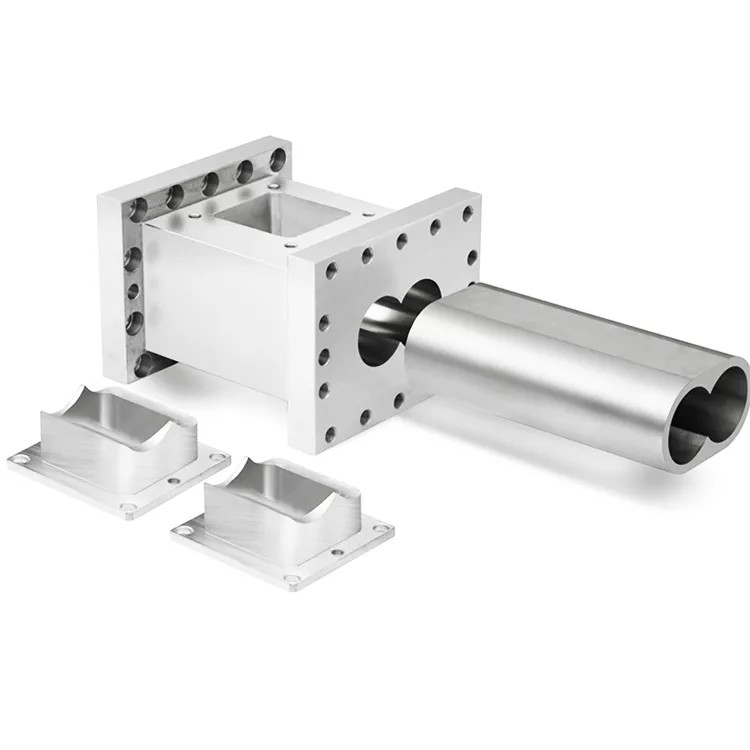

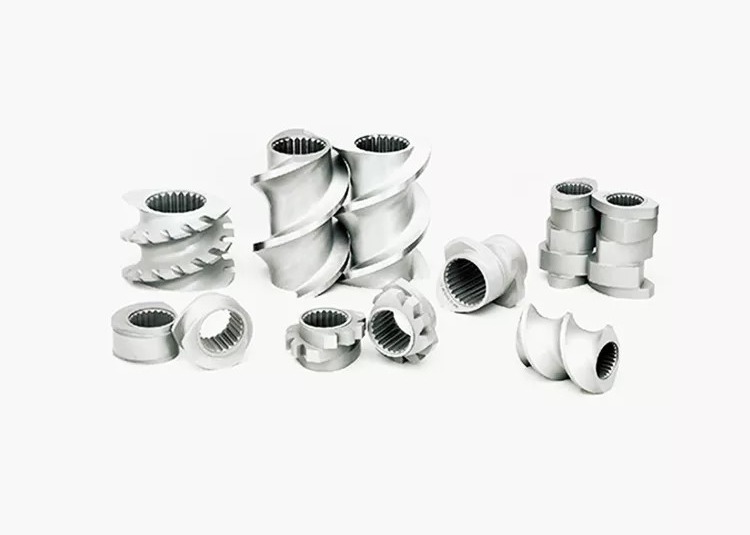

High Wear Resistance Screw Elements Spare Parts For Twin Screw Extruder 0
