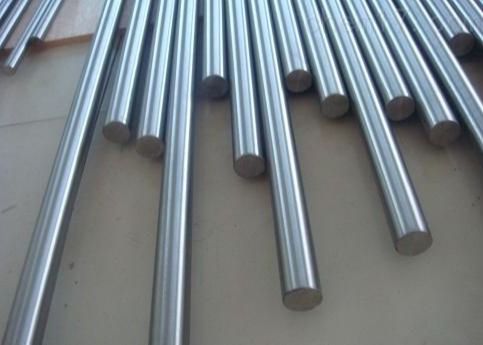

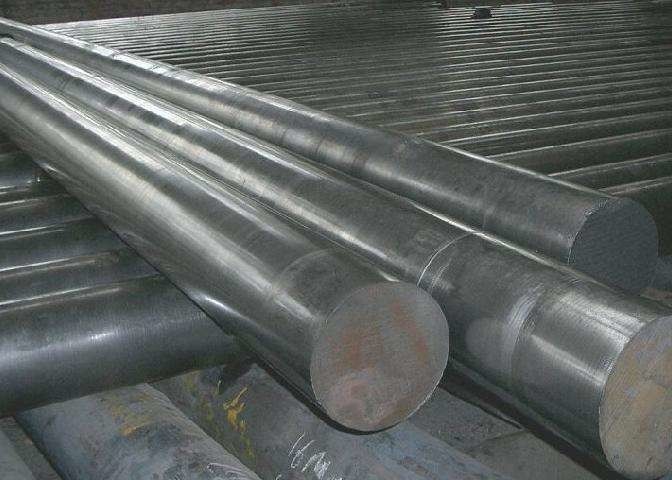

Low Expansion 4J36 UNS K93600 AISI ASTM Invar 36 Round Bar

Low Expansion 4J36 UNS K93600 AISI ASTM Invar 36 Round Bar

Low Expansion 4J36 UNS K93600 AISI ASTM Invar 36 Round Bar
Low Expansion 4J36 UNS K93600 AISI ASTM Invar 36 Round Bar

Product Details:

Place of Origin: China
Brand Name: BLM
Model Number: BLM-1

Payment & Shipping Terms:

Minimum Order Quantity: 100KG
Price: USD18-20/KG
Packaging Details: Wooden case/frame
Delivery Time: 10-30 work days
Payment Terms: L/C, T/T
Supply Ability: 100MT/moth
Contact Now
Detailed Product Description
Name: Invar36/FeNi36/4j36 Size: Customized
Surface: Black/birght/pickle Melting Temperature Range: 1430℃
Curie Temperature: 230 ℃ Specific Heat: 515 J/Kg
High Light:

ASTM Invar 36 Round Bar

,

AISI Invar 36 Round Bar

,

UNS K93600 Invar 36 Rod

 4j36/ Uns K93600/ AISI/ASTM Invar 36 /W. Nr 1.3912 Precision Alloy Bar/Rod





Invar 36 is a nickel-iron,low expansion,alloy containing 36% nickel.It maintains nearly constant dimensions over the range of normal atmospheric temperatures,and has a low coefficient of expansion from cryogenic temperatures of about 500.The alloy also retains good strength and thoughness at cryogenic temperatures.



Invar 36 can be hot and cold formed and machined using processes similar to austenitic stainless steels.Invar 36 is weldable using Filler Metal CF36 which is available in bare wire for both the GTAW and GMAW process.



Applied field:

Invar 36 suits for need to apply ultra-low coefficient of heat expansion environment.Typical applications are as follows:

1.Liquefied gas prodcution,storage and transport

2.The measurement and control instruments work temperature lower than 200℃,such as temperature regulating device

3.Metals and other materials use the screw connector bush

4.Bimetal and bimetallic temperature controller

5.Film framework

6.Shadow mask

7.CRP components of the aviation industry temper Die

8.Lower than -200℃ the satellite and missile electronic control unit framework

9.The auxiliary tube of the electromagnetic lens in the laser control device





  Ni Cr Fe C Mn Si Co P S
MIN 35
MAX 37 0.2 Margin 0.03 0.35 0.2 0.5 0.02 0.01



Cold rolled strip Hot rolled flat bar Hot forging bar Cold pulling wire Cold pulling bar
0.01-2.5 x1-400 2.5-20 x 5-400 Φ12-400x1000 Φ0.05-2.0 x L Φ2.0-12 x L



Type Feature Usage
4J32,4J36 Low coefficiency of thermal expension under 20~100°C

Kinds of instrument needs stable sizes;

Parts of instrument;

Resonance chase.

4J38

Low coefficiency of thermal expension under 20~100°C

Easy to be cut

Kinds of instrument needs stable sizes;

Parts of instrument;

Resonance chase.

4J40 Low coefficiency of thermal expension under 20~100°C Resonance chase of klystrin, microwave tube in electrical vacuum industry.
4J06,4J47,4J49 Simlar coefficiency of thermal expension as soft glass’under certain temperature range Match with soft glass in electrical vacuum industry.
4J42,4J45,4J50 Some coefficiency of thermal expension under certain temperature range

Match with soft glass and ceramic in electrical vacuum industry.
4J29 Simlar coefficiency of thermal expension as hard glass’under certain temperature range Match with hard glass in electrical vacuum industry.
4J44 Some coefficiency of thermal expension under 20~500°C Match with hard glass in electrical vacuum industry.
4J28 coefficiency of thermal expension under certain temperature range
corrision-resisting
Match with soft glass in electrical vacuum industry.
4J43 Some coefficiency of thermal expension under 20~400°C
dumet wire chip
4J33,4J34 Simlar coefficiency of thermal expension as 95%AI2O3 ceramic’under -60~+600°C Match with 95%AI2O3 ceramic in electrical vacuum industry.
4J58 Some coefficiency of thermal expension under 20~50°C High-precision Line Scale
4J78,4J80,4J82

Medium coefficiency of thermal expension under 0~600°C ;

No megnetic, corrision-resisting; high strength and tenacity.

Gyro and other ceramic





:
